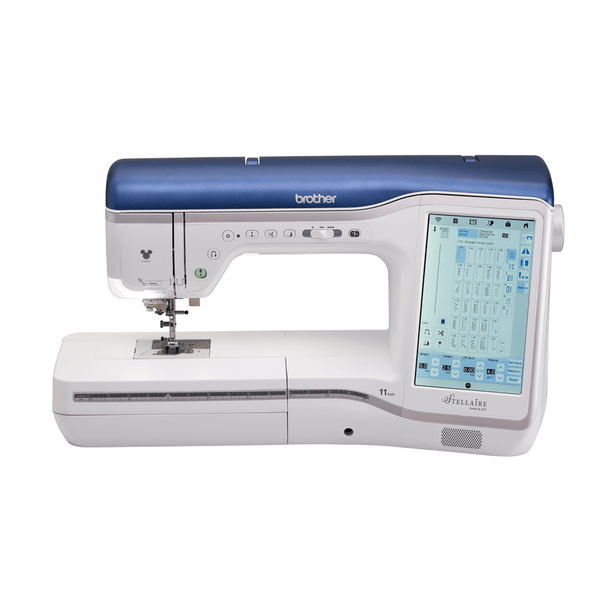

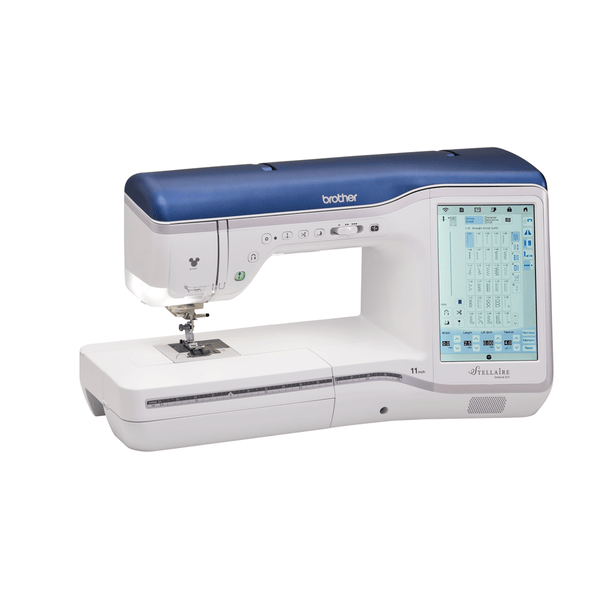

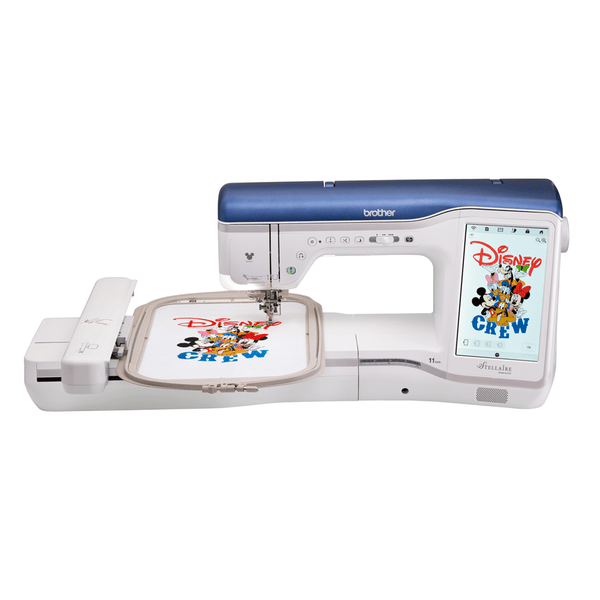

Brother Innov-is Stellaire XJ1

Regular price $12,499.95

GST included.

Because you’re an accomplished creative who wants a perfect finish, every time, we’ve designed the Stellaire Innov-is XJ1 just for you.

With the latest in sewing and embroidery technologies you’ll get consistent stitch length, laser straight lines and uniform edge stitching, whenever you sit down to sew or quilt. We know you'll love our embroidery designs (which include Disney), and creating your own designs using My Design Centre.

Overview

The Stellaire Innov-is XJ1 sewing and embroidery machine benefits from an LED drop needle pointer, laser precision, perfect positioning and faster embroidery speeds of up to 1,050 spm.

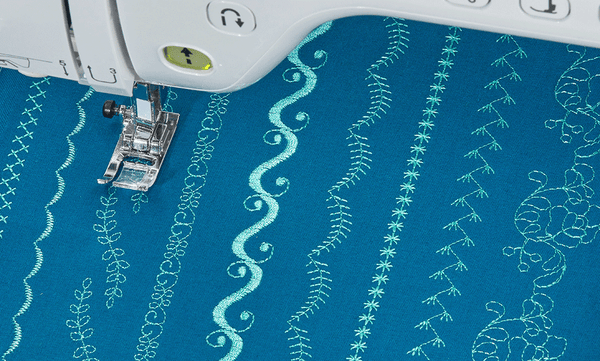

You can express yourself with 727 built-in decorative stitches, and four sewing fonts and 727 embroidery designs, including Disney and monograms, colour shuffling, enhanced thread palettes. Become a Stellaire pro with 24 built-in teaching videos.

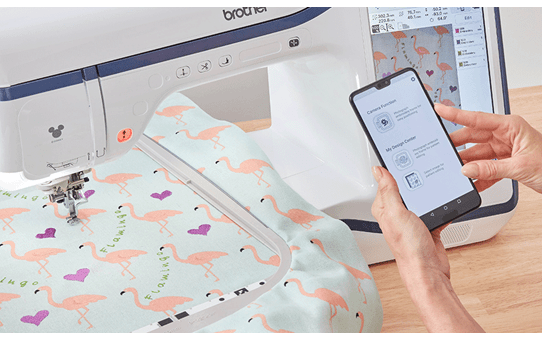

With Stellaire’s new My Design Snap app you can use your mobile device for quick, easy and precise embroidery positioning. Just take a picture of your fabric in the special embroidery hoop and wirelessly send the data to your Stellaire.

The Stellaire comes with My Design Center built in, our powerful, easy-to-use editing programme where you can create your own custom works of art. Draw straight into My Design Center using the Stellaire’s large drawing area on the touch screen, or use the built-in USB port to import your own jpegs to be turned into stitch data.

You can even pair My Design Center with My Design Snap to convert your own images into unique embroidery designs. You can ‘draw’ straight onto your fabrics, using the touchscreen to convert your designs into embroidery data.

You don’t even need a PC to get designing on your Stellaire!

The Stellaire Innov-is XJ1 comes pre-loaded with My Custom Stitch™ which allows you to create your own decorative stitches up to 7mm wide.

The extra large embroidery area of 240 x 360mm allows you to work on bigger projects, and with the bright 10.1” HD LCD display with five adjustable light settings, you can create at any time.

With 11.25” from needle to arm you can achieve anything you can imagine. From quilts to curtains, wedding dresses to bulky coats, there’s always space on the Stellaire Innov-is XJ1 to work quickly and comfortably.



Key Features



  • Extra-large embroidery area: 9.5 x 14" (360 x 240mm)
  • Up to 1050spm embroidery speed
  • 10.1” High resolution LCD screen
  • Wireless capability to work with My Design Snap app, and to import data from PE-Design 11
  • My Design Snap positioning app for easy positioning

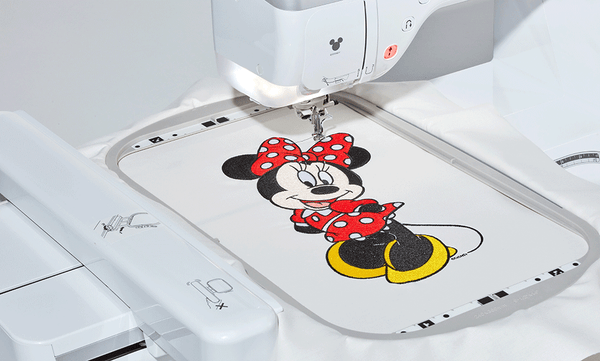

  • 727 built-in embroidery designs, including 101 Disney designs
  • 24 embroidery fonts (22 alphabets and 2 cyrilic fonts)
  • Stitch to Block funtion - change size of embroidery keeping the stitch density
  • LED pointer embroidery foot
  • Enhanced font editing functions
  • Colour shuffling with favourite setting
  • Automatic electronic needle threader
  • Auto jump stitch trimmer
  • USB port – making it easy to import designs
  • 24 Built-in teaching videos
  • 5 year warranty
  •

    What's in the Box

    Accessories included:

    Zigzag foot “J” (on machine)
    Monogramming foot “N”
    Overcasting foot “G”
    Zipper foot “I”
    Buttonhole foot “A”
    Blind stitch foot “R”
    Button fitting foot “M”
    Dual feed foot
    Straight stitch foot
    Free motion open toe quilting foot “O”
    Embroidery foot “W+” with LED pointer
    1/4 quilting foot with guide
    Adapter
    Screw (small)
    Needle set: 75/11 2 needles, 90/14 2 needles, 90/14 2 needles: Ball point needle (gold colored)
    Twin needle: 2.0/11 needle
    Ball point needle set: 75/11 2 needles: Ball point needle for embroidery
    Bobbin × 10  (One bobbin is in machine.)
    Seam ripper
    Scissors
    Cleaning brush
    Eyelet punch
    Screwdriver (small)
    Screwdriver (large)
    Disc-shaped screwdriver
    Spool cap (small)
    Spool cap (medium) × 2 (One spool cap is on machine.)
    Spool cap (large)
    Thread spool insert (mini king thread spool)
    Bobbin clip × 10
    Spool felt (on machine)
    Spool net × 2
    Embroidery needle plate cover
    Touch pen (stylus)
    Knee lifter
    Foot controller
    Standard bobbin case (green marking on the screw) (on machine)
    Alternate bobbin case (no color on the screw)
    Straight stitch needle plate
    Cord guide bobbin cover (with single hole)
    Bobbin cover (with mark)
    Bobbin cover (on machine)
    Embroidery frame with decal set: H 36 cm × W 24 cm (H 14 inches × W 9-1/2 inches)
    Embroidery frame with decal set: H 18cm × H 13cm (H 7 inches × W 5 inches)
    Embroidery positioning sticker sheets × 4
    Lens calibration sheet
    Embroidery bobbin thread (#60, white)
    Stabilizer material
    Grid sheet set
    Chalk pencil
    Operation Manual
    Quick Reference Guide
    Accessory Bag
    Vertical spool pin
    Dust cover

    Included accessories subject to change without notice.

    Features in Depth

    General Features

    Work space
    11.25” (285) long arm to the right of the needle and 5” height from sewing bed to top of machine arm

    Lighting
    Almost 11” of full-spectrum lighting around the needle with five adjustable brightness settings

    Needle threader

    Easy to use, automatic needle threading system

    Bobbin winder
    Independent bobbin winder system with adjustable winding speed

    Wireless
    Wireless LAN capability for exchange of embroidery data with PE-Design 11 and My Design Snap mobile app

    Thread tension
    Automatic thread tension

    Thread cutter
    Trims upper and lower threads automatically

    Presser foot
    Automatic presser foot lift and extra high lift

    Thread sensors
    Gives you a warning when your upper and lower threads are running low

    Teaching movies
    Up to 24 built-in teaching videos and MP4 playability

    Environment
    Save energy with the Eco and Deep Sleep modes

    My Design Center
    Create your own designs on-screen

    My Design Snap
    Mobile app for perfect placement of embroidery designs

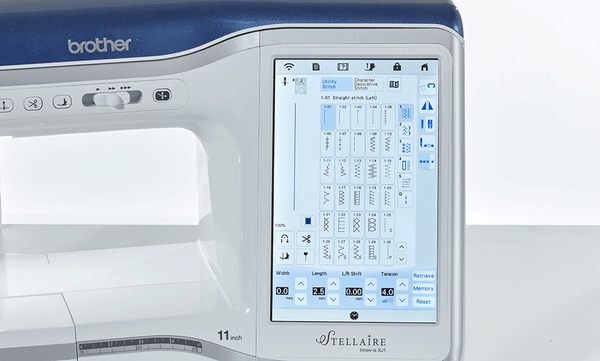

    LCD Display
    Large and clear 10.1" (800 x 1280px) built-in HD LCD display

    Intuitive user interface
    Easy-to-use screen layout and realistic preview of selected stitches and patterns

    USB connectivity
    Two high-speed USB ports to upload designs easily. Can also use an optional external USB embroidery card reader for older Brother design cards

    Multilingual
    12 built-in languages

    Safety features
    Easily disengage needle to make changing presser feet and needles safer, and lock the screen to avoid any accidental stitch changes

    Updates
    Software update capability

    Embroidery Features

    Embroidery area
    Large 9.5 x 14" / 240 x 360 mm embroidery area

    Embroidery speed
    Embroidery up to 1,050 stitches per minute

    Built-in designs
    Total 727 embroidery patterns including 101 Disney, monogram and buttonhole shapes

    Built-in fonts
    Built-in 24 embroidery fonts (22 Alphabet & 2 Cyrillic)

    Text edit functions
    Simplified user interface for text input and editing, with various editing capabilities such as curving, arraying and space adjustment

    Font sizes
    S/M/L size for font designs

    Built-in frame designs
    140 frame pattern combinations

    Thread trimming
    Jump stitch thread trimming with thread wiper

    Density
    On-screen auto density adjustment (Stitch-To-Block) available for embroidery and letters

    LED pointer
    Laser pointer for precise pattern placement

    Advanced editing functions
    Design editing, flip designs horizontally, pattern rotating (0.1, 10 and 90 degrees), drag and drop operation, zoom up to 200%

    Basting
    Embroidery basting

    Colour Shuffling
    Color shuffling function that can choose one thread brand with more colour variations, with pinning, and favourite mark capability

    Stippling
    No-fuss stippling in embroidery edit

    Selecting Designs
    Advanced multiple design selection

    Colour change
    Direct touch button for changing colours of embroidery patterns

    Resume function
    Resume your embroidery at the exact spot where you stopped incase of a power failure or accidental interruption

    Appliqué creator
    Built-in Appliqué Creator; create multiple appliqués in one hoop

    Optimised colour sorting
    Quickly sort colours in different designs for optimised sewing order and to minimise thread changes

    Frame detection
    Automatic embroidery frame size detection

    Progress bar
    View the progress of an embroidery pattern or individual colour, and use to move forwards/backwards through the design

    Thread palettes
    Select various thread brands for built-in and external designs

    Included frames
    Two standard frames, compatible with My Design Snap,  included 240 x 360 mm (9.5 x 14") and 130 x 180 mm (5 x 7")


    Sewing Features

    Built-in sewing stitches
    Total of 727 utility, decorative stitches and buttonholes

    Lettering fonts
    Four built-in sewing lettering fonts (three alphabet, 1 Cyrillic)

    Sewing speed
    Sew up to 1,050 stitches per minute

    Combination stitches
    Individual adjustment for combined stitches (depending on category)

    My Custom Stitch™
    My Custom Stitch™ gives you the ability to combine and edit custom stitches. Includes 185 built-in sample stitches

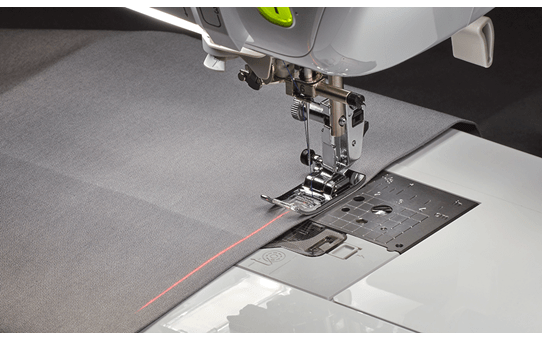

    Laser guideline marker
    Guideline marker with 19 mm side shift capability

    ICAPS fabric sensor system
    Continuously adjusts presser foot pressure

    Lock stitch
    Reinforcement stitch at start and end of sewing

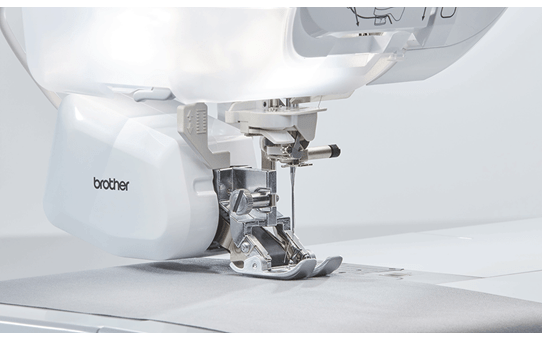

    Dual feed
    Digital Dual Feed System for even and consistent sewing on all fabrics

    Pivot and foot height
    Lightning-quick pivoting functionality with customisable foot height

    SFDS
    Square feeding system with powerful and long feed dogs

    Needle plate detector
    Needle plate detector for safe operation

    Straight stitch
    Straight stitch needle plate and straight stitch foot included

    Ruler
    Ruler design with zero mark at the needle

    Free motion
    Presser foot height adjusts according to the thickness of the fabric

    Drop feed function
    Convert to free motion mode easily with a touch of a button on screen

    Automatic presser foot functions
    Bring presser foot down automatically using the Start/Stop button, knee lift and foot pedal

    Specifications

    Other

    Brand Innov-is, Stellaire
    Design Computerised
    Function Embroidery, Quilting, Sewing
    Machine Size X-Large
    Machine Type Embroidery Machine, Sewing Machine
    Skill Level Advanced, Intermediate
    Use Business, Home

    Connectivity

    USB Port 2 Hosts (2.0/2.0) / 0 Slave

    Display

    Display Resolution (Pixel) 800 x 1280
    Display Size 10.1" Colour mm
    Stitch Selection LCD Touchscreen
    Type of Screen High-Resolution IPS LCD-Touchscreen

    Embroidery

    Built-In Embroidery Frame Patterns 140 (10 shapes x 14 stitch types)
    Built-In Lettering Styles (Embroidery) 24(22 Alphabet, 2 Cyrillic)
    Built-In Patterns 727
    Camera with Scan Function (Built-in Camera) My Design Snap App
    Colour Shuffling Yes
    Embroidery Area in mm 240 x 360 (9.5 x 14")
    Font Editing Functions/Multiple Lines and Alignment (L-C-R) Yes
    Font Size Selection (L-M-S) Yes
    Frames Included Embroidery Frame: 4 x 4" (100 x 100 mm), Embroidery Frame: 5 x 7" (130 x 180 mm), Embroidery Frame: 9.5 x 14" (240 x 360 mm), Embroidery Frame: 9.5 x 9.5" (240 x 240 mm)
    Jump Stitch Trim Yes
    LED Pointer Embroidery Foot Included
    Max Embroidery Speed (Stitches per Minute) 1050
    Multiple Line Input Yes
    My Design Center Yes
    New UI (Slide Scroll Operation) Yes
    Number of Hoops (Standard Accessory) 4
    Number of Spool Stands 2
    On Screen Video Tutorials Yes
    Pattern - Size, Change Rotation & Mirror Yes
    Realistic Preview of Patterns Yes
    Single Colour Pattern Converter Yes
    Thread Colour Sorting Yes

    Environment

    Eco Mode (Auto Power Off/Sleep Mode) Yes

    General

    Accessory Box Yes
    Accessory Compartment Yes
    Bobbin Type Horizontal
    Case Soft Cover
    Hardware Type Electronic
    Insertion of Bobbin Top Load Drop-in Bobbin
    Instructional Manual PDF Viewer Yes
    Number Of Needles 1
    Wide Table Optional

    Sewing

    Adjustable presser foot Electronic
    Automatic reverse / reinforcement stitch Yes
    Bobbin Work Optional
    Built-In Lettering Styles 4
    Buttonholes 14 one-step, 1 four-step
    Circular Sewing Optional
    Combine stitches Yes
    Continuous Automatic Pressure System (ICAPS) Yes
    Direct Dual Feed Yes
    Drop feed setting Electronic
    Electronic slide speed control yes
    Extension Wide Table Optional
    Free arm sewing Yes
    Knee lift Yes
    Laser Function Yes
    Lighting 7 LEDs
    Max. Sewing Speed (Stitches per minute) 1050
    Mirror imaging Yes
    Multi-Directional Sewing Yes (up to 8 sideways)
    Foot controller Optional
    Needle Positions 29
    Needle Stop Position Control Up/Down Yes
    Number of Included Presser Feet 14
    Number of Sewing Stitches *incl. Buttonholes 727
    Pivot function Yes
    Presser Foot Levelling Button Yes
    Projector Guideline Marker Yes
    Repeated single sewing Yes
    Sewing Arm Length 11.25" (285.75 mm)
    Snap on Presser Feet System Yes
    Speed control customised for zigzag width Yes
    Workspace (mm) 28.5

    Warranty Information

    Warranty Brother 5 year Warranty *Commercial use only 1 year warranty.

    Threading

    Adjustable Thread Tension Automatic
    Automatic Thread Cutter Yes
    Bobbin Winder Independant
    Lower Thread Sensor Yes
    Needle Threading System Automatic
    Upper Thread Sensor Yes

    Weight and Measurements

    Machine Dimension 916 x 524 x 348 mm
    Weight 17.1 kg
