PR680W is engineered to deliver professional results in a compact, easy-to-use package. Embroider a wide variety of items such as caps, jackets, jeans, hats and towels with logos, names, monograms, and more.
- 10.1" built-in LCD touch screen display
- 200mm x 300mm (8" x 12") maximum embroidery area
- Precision cross-hair needle positioning
- 18 monogramming fonts, 50 lettering fonts
- High-speed industrial acceleration
- Automatic needle threader and trimmer
- 6-Needle Embroidery
WIFI enabled for fast, easy transfer of designs
Features in Depth
6-Needle Versatility Each needle offers customisable settings for speed, colour lock, and now the disengagement of the needle threader – useful when using a thin needle. At the same time, Thread Tension Range Expansion creates a wide range of tension settings, making it easier to embroider on difficult fabrics with correct tension without distorting or puckering the fabric.

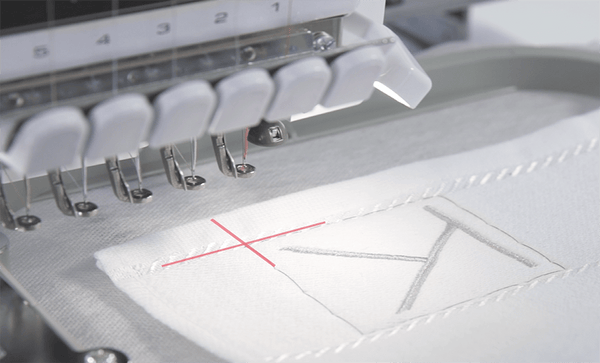

Crosshair Embroidery Droplight Laser Get precision accuracy positioning and light up your fabric to see where the needle will drop for all your projects with the Crosshair Embroidery Droplight Laser. Accurate to +/- 0.5 mm from needle drop with materials up to 1mm thick. The new laser crosshair has a longer horizontal axis, which makes it extremely accurate for placement – even if you hoop your items crooked.
Connect Wirelessly When connected to your wireless network, send designs from your PC to the PR680W with included Design Database Transfer software and get alerts directly to your mobile phone or tablet when it's time to change thread or when your project is complete with the free app My Stitch Monitor. You can also link up to 10 machines wirelessly and get machine updates automatically when using with PE-Design 11 (additional purchase required).
Six-Needle Speed Increase your productivity and efficiency with industrial-leading high-speed acceleration! Reach up to 1,000 stitches per minute in seven seconds. Projects will be completed faster and with minimal noise.
Colour Grouping, Colour Management, and Colour Sort The PR680W has Colour Grouping, which allows multiple regions to be selected at a time for editing colour; intuitive Colour Management for easy design customization; and Colour Sort, which helps to cut down on thread changes when combining designs.
Short Cut Key and Lock Mode Feature The PR680W can support a busy embroidery business with a short cut key that allows the user to jump directly to the embroidery screen from multiple screens to save time. The new Security Lock Modes allow a business owner to customize access to machine functions to different roles – helping to secure important business designs and keep the machine operator focused on critical tasks.
LED Lighting and Spacious Work Area The PR680W has a generous 200mm x 300mm (8” x 12”) embroidery area for just about any sized project. With bright, customizable lighting, you can illuminate your work with 4 built-in LED lights Customize the light brightness between 5 settings, including ‘off’ mode to find your ideal level.
Colour LCD Touchscreen Display The large 10.1" built-in high-definition LCD display, with large icons and scrolling menu, makes on-screen editing and letter input a snap. Large defined icons, thumbnail size selector, colour navigation, scrolling menu, swipe capability, and the ability to view your design properties in 'Preview' mode. On-screen editing and letter input is a snap.
Expandable Library of Built-in Tutorials The PR680W HD tutorials make learning easy. View 24 tutorial videos directly on the high-definition LCD display–with everything from basic operations to embroidery functions.
Built-in Designs Create new projects or add a nice upcycling touch with 100 built-in embroidery designs, 18 monogramming font styles, 140 frame pattern combinations, 50 lettering fonts, 50 built-in utility stitch designs, and 10 buttonhole styles in 3 sizes.
Features and Specifications
|Brand||PR / Professional Range|
|Machine Size||Not Portable|
|Machine Type||Embroidery Machine|
|Skill Level||Advanced, Beginner, Intermediate, Small Business Use|
|USB Port||PC and 2x High Speed USB Port|
|My Stitch Monitor App||Yes|
|Display Resolution (Pixel)||800 x 1280|
|Type of Screen||High-Resolution IPS LCD-Touchscreen|
|Stitch Selection||LCD Touchscreen|
|Creating a Custom Thread Table||Yes|
|Embroidery Area in mm||300 x 200|
|Extension Wide Table||Optional|
|Font Editing Functions/Multiple Lines and Alignment (L-C-R)||Yes|
|Font Size Selection (L-M-S)||Yes|
|Free Arm Embroidery||Yes|
|High Speed Acceleration||Yes|
|Jump Stitch Trim||Yes|
|LED Pointer||Embroidery Foot Included|
|Max Embroidery Speed (Stitches per Minute)||1000|
|Multiple Line Input||Yes|
|Number of Spool Stands||6|
|On Screen Video Tutorials||Yes|
|Pattern - Size, Change Rotation & Mirror||Yes|
|Realistic Preview of Patterns||Yes|
|Single Colour Pattern Converter||Yes|
|Thread Colour Indicator||Yes|
|Thread Colour Sorting||Yes|
|Brother Mobile Device App||My Stitch Monitor|
|Built In Monogram Styles||18|
|Built-In Embroidery Frame Patterns||140|
|Built-In Lettering Styles (Embroidery)||651|
|Camera To Help Set Embroidery Patterns Position (Camera Sensor)||Laser cross-hair positioning|
|Cap Frames||Optional, not included|
|Frames Included||Embroidery Frame: 4 x 4" (100 x 100 mm), Embroidery Frame: 5" x 7" (130 x 180 mm), Embroidery Frame (300 x 200 mm), Embroidery Frame (38 x 50 mm)|
|Number of Hoops (Standard Accessory)||4|
|Progress Indication Bar||Yes|
|Eco Mode (Auto Power Off/Sleep Mode)||Yes|
|Voltage||220 - 240V|
|Insertion of Bobbin||Anytime Access|
|Number Of Needles||6|
|Utility Stitches *incl. Buttonholes||80|
|Warranty||5 year warranty (1 year for commercial purposes)|
|Automatic Thread Cutter||Yes|
|Lower Thread Sensor||Yes|
|Upper Thread Sensor||Yes|
|Needle Threading System||One-touch needle threading button|
Weight and Measurements
|Machine Dimension||512(W) x 589 (D) x 770(H) mm|
